NS Wadatkar1*, SA Waghuley2
1Department of Physics, Government Polytechnic, Amravati 444602, India
2Department of Physics, Sant Gadge Baba Amravati University, Amravati 444602, India
Frontier Research Today, 2019, 2, 2001
Published Online: 30 January 2019 (Article)
DOI: 10.31716/frt.201902001
*Corresponding Author. Email: This email address is being protected from spambots. You need JavaScript enabled to view it. Tel: 91-8856023571
Abstract
In this study, the different samples of conducting polyindole (PIn) were synthesized through an oxidative in situ polymerization of pre-adsorbed indole, employing anhydrous ferric chloride (FeCl3) as oxidant in aqueous solution. The optimized as-synthesized sample was characterized through X-ray diffraction (XRD) and field emission scanning electron microscopy (FE-SEM) techniques. The amorphous nature observed in XRD profile delicately supported by FE-SEM picture. The temperature dependent DC electrical conductivities of different as-synthesized samples were measured using two probe technique in the temperature range 303-393 K. The nature of plotted conductivities curves followed Arrhenius relation. The ionic conductivity was found to be dominant over the electronic conductivity and varies between 71% and 83%.
Keywords
Chemical polymerization; Polyindole; DC conductivity; Arrhenius relation
Introduction
The study of conducting polymers constitute an emerging new class of materials science after the discovery of Alan J. Heeger, Alen G. MacDiarmid and Hideki Shirakawa by Nobel Prize award in Chemistry in the year 20001. The conjugated conducting polymers shows excellent electrical conductivities in oxidized state2. The current development in the processable conducting polymers has opened the ways for extensive industrial applications. The leading applications of conducting polymers is focus on different areas, such as rechargeable batteries, fabrication of electronic devices, solar energy conversion, sensors, electromagnetic shield, molecular electronics3-8. Besides to this, the electroactive properties of heterocyclic conjugated conducting polymers containing nitrogen atoms such as polyaniline, polypyrrole, polycarbazole and their derivatives has fascinated significant interest due to their potential applications in research and industrial fields9,10. These heterocyclic conjugated conducting polymers have received a great deal of attention because of their good electrical properties, environmental stability and ease of synthesis11-13.
Among these heterocyclic conducting polymers, polyindole (PIn) possesses the properties of both poly(para-phenylene) and polypyrrole together, such as relatively high electrical conductivity, high thermal stability, slow degradation rate and good-redox activity and stability14-16. The electroactive PIn is normally synthesized at room temperature through chemical approaches: emulsion polymerization; interfacial polymerization; electrochemical polymerization and chemical polymerization of indole monomer17-20. The oxidative couplings of indole can be obtained by chemical polymerization technique with oxidants like FeCl3 and CuCl2.
The existing literature reported the chemical oxidation of indole monomer using a strong oxidizing agent, chloroauric acid (HAuCl4), through one step in-situ route, for the formation of Au/PIn nanocomposite with a core-shell structure21. PIn nanoparticles are synthesized through chemical oxidative route in presence of a surfactant and also PIn-ZnO nano composites are prepared by in situ polymerization and incorporation technique22. The different samples of conducting PIn are synthesized by chemical oxidative polymerization of monomer indole by using anhydrous FeCl3 oxidant and studied the thermal, electrical and dielectric properties23. Gupta et al. have studied chemically synthesized PIn conducting polymers without using any surfactant. In this work, the synthesis method and solvent are playing crucial role on the morphologies and crystal structures of the polymers. Thermal analysis showed high thermal stability of the polymers24. Polyindole/poly(vinyl acetate) composite films synthesized by chemical oxidative polymerization technique, studied the DC electrical conductivity using two probe method25. The complex optical properties of chemically synthesized conducting PIn can be successfully studied and this polymeric material was found to have potential applications in optoelectronics devices26.
In the present work, an innovative approach has been made to report on novel one pot synthesis of PIn through chemical polymerization of monomer indole in aqueous solution. The samples of conducting PIn are derived with FeCl3 as an oxidant at room temperature. The characterization techniques, XRD and FE-SEM are employed to study the structural and morphological properties of PIn.
Experimental
Indole powder (monomer), anhydrous iron (III) chloride (FeCl3), and hydrogen peroxide (H2O2) from SD Fine Chemicals (AR-grade) were employed in the current study. The indole monomer was used as received for synthesis of PIn without further purification. The samples were synthesized at room temperature (303 K) by mixing indole with FeCl3 in deionised water. H2O2 (0.3 ml) was used to enhance the rate of reaction and conjointly yield. The different samples of PIn were synthesized according to chemical oxidative polymerization method by varying the different stoichiometric ratios of indole to FeCl3 as (70:30), (60:40), (50:50), (40:60) and (30:70) Wt. %, herein after denoted by a, b, c, d, and e, respectively23. The Structural mechanism for one pot chemical polymerization of PIn is shown in Scheme 1.
Scheme 1. Structural mechanism for one pot chemical polymerization of PIn.
For DC electrical measurements, the samples were made in the form of pellets, polished and conducting silver paste was deposited on both sides. The area of the pellet was taken to be an area exposed to the electrode surface. The temperature dependent DC electrical conductivity of prepared samples were obtained over a temperature range from 303-393 K.
In order to estimate ionic transference number, both the sides of different samples of PIn were polished by graphite paste, so that the graphite electrodes (blocking electrodes) were obtained. The samples were held between the sample holders, which was provided with spring-mechanical pressure to have a good electrical contact. A constant (DC) voltage of 5V was applied to the samples. The measurement was performed at room temperature. The total ionic (tion) and electronic (tele) transference numbers were calculated from Eqs. (1) and (2)27,28:
where, Ii is the initial value of the current at the start; and If is the current on reaching saturation.
Results and discussion
X-ray diffraction (XRD) is the most useful method for investigating the structural properties and crystallinity of the polymer. The X-ray diffraction was recorded with Cu-Kα radiation (λ=1.54 Å) in the Braggs angle range (2θ) from 10° to 70° with a scan rate of 2° per minute. The XRD patterns for the sample of PIn with stoichiometric ratio of indole and FeCl3 as (40:60) Wt. % is displayed in Figure 1. There are no characteristic peaks, which corresponds to any crystalline phase. The broad hump in XRD profile suggests an amorphous structure, which is the characteristic of PIn. Also, the amorphous nature of the as-synthesized sample has evident from the noisy peaks present in the XRD patterns. The amorphous hollow centered at 2θ positions of 26º. The polymer chain separation was estimated using the relation29:
where, λ is the wavelength of X-ray source used for XRD analysis and θ is diffraction position. The polymer chain separation for derived material was estimated using the peak value of amorphous hollow. The chain separation for this sample is found to be 2.2 Å.
Figure 1. X-ray diffraction profile of PIn sample with stoichiometric ratio of indole and FeCl3 as (40:60) Wt. %.
Surface morphology of PIn sample with stoichiometric ratio of indole and FeCl3 as (40:60) Wt. % was characterized using field emission scanning electron microscopy and displayed in Figure 2. The image shows the randomly distributed granular micro-porous morphology over the substrate. The micrograph depicts the presence of aggregation up to some extent as well as an agglomeration of particles. The amorphous nature observed in XRD analysis is delicately supported by the FE-SEM picture.
Using material dimensions, DC conductivity (σDC) for all the as-synthesized samples were estimated. The variation of temperature dependent conductivity in range 303-393 K for PIn samples with different stoichiometric ratios of indole and FeCl3 as (70:30-30:70) Wt. % is shown in Figure 3(a-e). With increase in temperature of the polymeric sample, the material become soft. Hence, main chain segment as well as the rotation of side groups becomes mobile in the matrix of the polymer. Thus, at higher temperature large number of dipoles are oriented. This results in the large equivalent surface charge density. The plot shows that the DC conductivity exhibits an Arrhenius-type temperature dependence given by the relation30:
where, EDC is activation energy which was calculated from the least square straight line fitting of plots and σ0 be the pre-exponential factor.
Figure 2. SEM micrograph of PIn sample with stoichiometric ratio of indole and FeCl3 as (40:60) Wt. %.

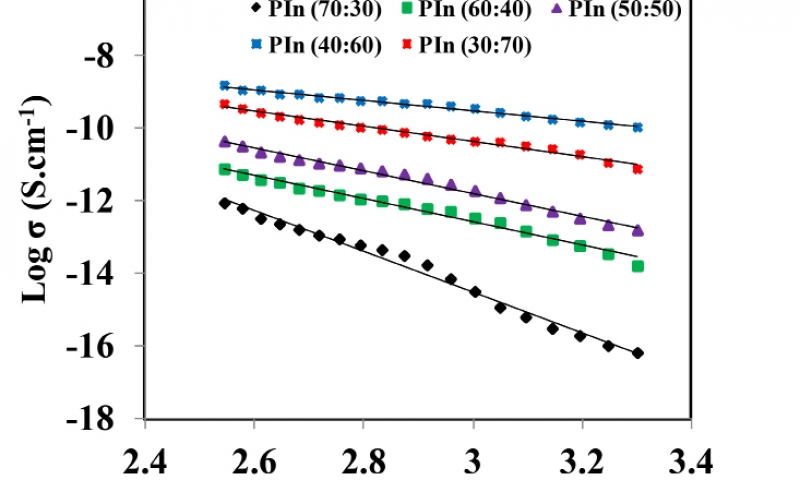

Figure 3. Temparature dependence of DC conductivity for different PIn samples.
As the temperature increases, the DC conductivity of as-synthesized samples also increases, which ranging from 10-4 -10-6 S cm-1 within measured temperature range. The increased in the conductivity is due to an increase in charge-carrier concentration. From the plot, it is observed that there is no any abrupt jump in the conductivity values with temperature. This shows the complete amorphous structure of synthesized samples31. PIn sample with stoichiometric ratio of indole and FeCl3 as (40:60) Wt. % has the highest value of σDC, which is estimated to be 1.49×10-4 S cm-1 at 393 K. Also, the activation energy (EDC) required to overcome the potential barrier is found to be 0.12 eV which is the lowest value among all. The values of σDC and EDC for different samples of conducting PIn are as given in Table 1.
The variation of σDC and EDC as a function of PIn with different mol of FeCl3 is depicted in Figure 4. It reveals that the conductivity of as-synthesized samples shows the random nature. It is maximum for the sample with stoichiometric ratio of indole and FeCl3 as (40:60) Wt. % and then decreases continuosly from (30:70) Wt. %, while the sample with stoichiometric ratio of indole and FeCl3 as (70:30) Wt. % has minimum conductivity. The highest conductivity is found to be 1.49 ×10-4 S cm at 393 K. The value of activation energy ranges between 0.124-0.488 eV. There is a inverse relation between DC electrical conductivity and activation energy. In the system, even a small number of molecules or atoms will have sufficient energy to reach activation energy level at any temperature. With in increase in temperature, the energy of number of particles in the system becomes enough to overcome the potential barrier. This shows that, as temperature increases, the activation energy decreases. Hence, decrease in activation energy corresponds to delocalization of charge carriers due to increase in temperature and electric field. As the temperature increases, the ions diffuses in the space charge polarization . The orientation of polar molecules in the applied field have sufficient thermal energy to overcome the activation barrier30. This may be due to a maximum density of free electron and mobile ion concentration. Beyond a certain concentration of oxidant, σDC starts to decrease and EDC increase. It may be due to the hindrance in “mixed anion effect”32,33.
Figure 4. Variation of σDC and EDC for different PIn samples.
The plot between DC current and time for PIn samples with different stoichiometric ratios of indole and FeCl3 as (70:30-30:70) Wt. % is displayed in Figure 5(a-e). The transference number is the measure of ionic and electronic contributions to total conductivity. The DC polarization method was used to determine the total ionic transference number (tion) and electronic transference number (tele) by holding the pellet side to side between electrodes of graphite (blocking). The stable DC potential (5V) applied across the material to monitored the polarization current as a function of time. The total ionic and electronic transference numbers have been estimated from the plot using equations (1) and (2). The figure represents the plot of current versus time for all samples, which displays the typical behavior of the ionic charge transport. After a certain time, the total current becomes nearly stable at certain non-zero value. The residual current chiefly owes to electrons/holes. The values of transference numbers are found to be in the range of 0.71 to 0.83. This suggests that the charge transport in all the samples are mostly owing to ions. It shows that the conduction mechanism in as-synthesized material was dominated by ions.
Figure 5. Plots of DC current versus time for different PIn samples.
Conclusions
The amorphous nature of as-synthesized optimized sample of conducting PIn confirmed through XRD which also reflects from FE-SEM analysis. The DC conductivity shows Arrhenius-type temperature dependence. The maximum value of DC conductivity was found to be 1.49×10-4 S cm-1 at 393 K for PIn with stoichiometric ratio of indole and FeCl3 as (40:60) Wt. %. The values of activation energy were found to be in the range of 0.124-0.488 eV. The ionic conductivity is found to be dominant over the electronic conductivity and varies between 71% and 83%.
Acknowledgments
Authors are very much thankful to Head, Department of Physics Sant Gadge Baba Amravati University, Amravati for providing the necessary facilities.
Notes
The authors declare no competing financial interest.
References
[1] Phasuksom K, Sirivat A. Synthesis of nano-sized polyindole via emulsion polymerization and doping. Synthetic Metals; 2016;219:142–53. doi:10.1016/j.synthmet.2016.05.033
[2] Hosseini SH, Madani MS, Ashjari M. Synthesis and Characterization of Polythiophene With Liquid Crystalline Azobenzene as Side Chains. Synthesis and Reactivity in Inorganic, Metal-Organic, and Nano-Metal Chemistry. 2013;43(6):691–8. doi:10.1080/15533174.2012.753627
[3] Li X, Xia J, Zhang S. Label-free detection of DNA hybridization based on poly(indole-5-carboxylic acid) conducting polymer. Analytica Chimica Acta. 2008;622(1-2):104–10. doi:10.1016/j.aca.2008.05.044
[4] Nguyen D, Yoon H. Recent Advances in Nanostructured Conducting Polymers: from Synthesis to Practical Applications. Polymers. 2016;8(4):118. doi:10.3390/polym8040118
[5] Rajasudha G, Narayanan V, Stephen A. Effect of Iron Oxide on Ionic Conductivity of Polyindole Based Composite Polymer Electrolytes. Advanced Materials Research. 2012;584:536–40. doi:10.4028/www.scientific.net/amr.584.536
[6] Antonel PS, Berhó FM, Jorge G, Molina FV. Magnetic composites of CoFe2O4 nanoparticles in a poly(aniline) matrix: Enhancement of remanence ratio and coercivity. Synthetic Metals. 2015;199:292–302. doi:10.1016/j.synthmet.2014.12.003
[7] Wei H, Zhu J, Wu S, Wei S, Guo Z. Electrochromic polyaniline/graphite oxide nanocomposites with endured electrochemical energy storage. Polymer. 2013;54(7):1820–31. doi:10.1016/j.polymer.2013.01.051
[8] Wang Q, Wang S, Li J, Moriyama H. Synthesis and characterization of C60/polyaniline composites from interfacial polymerization. Journal of Polymer Science Part B: Polymer Physics. 2012 10;50(20):1426–32. doi:10.1002/polb.23142
[9] Grimsdale AC, Leok Chan K,tin RE, Jokisz PG, Holmes AB. Synthesis of Light-Emitting Conjugated Polymers for Applications in Electroluminescent Devices. Chemical Reviews. 2009 11;109(3):897–1091. doi:10.1021/cr000013v
[10] Hasan M, Ansari MO, Cho MH, Lee M. Electrical conductivity, optical property and ammonia sensing studies on HCl Doped Au@polyaniline nanocomposites. Electronic Materials Letters. 2015;11(1):1–6. doi:10.1007/s13391-014-4200-9
[11] Zhou W, Xu J. Progress in Conjugated Polyindoles: Synthesis, Polymerization Mechanisms, Properties, and Applications. Polymer Reviews. 2016;57(2):248–75. doi:10.1080/15583724.2016.1223130
[12] Xu J, Hou J, Zhang S, Zhang R, Nie G, Pu S. Electrosyntheses of high quality poly(5-methylindole) films in mixed electrolytes of boron trifluoride diethyl etherate and diethyl ether. European Polymer Journal. 2006;42(6):1384–95. doi:10.1016/j.eurpolymj.2005.12.009
[13] Le Z, Zeng L, Xu J, Liu H, Ma M. Low-potential electrochemical polymerization of 6-nitroindole and characterization of its polymers. Journal of Applied Polymer Science. 2007;107(5):2793–801. doi:10.1002/app.27388
[14] Sari B, Yavas N, Makulogullari M, Erol O, Unal HI. Synthesis, electrorheology and creep behavior of polyindole/polyethylene composites. Reactive and Functional Polymers. 2009 Nov;69(11):808–15. doi:10.1016/j.reactfunctpolym.2009.07.002
[15] Nie G, Zhou L, Guo Q, Zhang S. A new electrochromic material from an indole derivative and its application in high-quality electrochromic devices. Electrochemistry Communications. 2010;12(1):160–3. doi:10.1016/j.elecom.2009.11.013
[16] Cai Z, Geng M, Tang Z. Novel battery using conducting polymers: Polyindole and polyaniline as active materials. Journal of Materials Science. 2004;39(12):4001–3. doi:10.1023/b:jmsc.0000031481.12810.39
[17] An S, Abdiryim T, Ding Y, Nurulla I. A comparative study of the microemulsion and interfacial polymerization for polyindole. Materials Letters. 2008;62(6-7):935–8. doi:10.1016/j.matlet.2007.07.014
[18] Pandey PC, Chauhan DS, Singh V. Effect of processable polyindole and nanostructured domain on the selective sensing of dopamine. Materials Science and Engineering: C. 2012;32(1):1–11. doi:10.1016/j.msec.2011.08.020
[19] Soylu O, Uzun S, Can M. The investigation of acid effect on chemical polymerization of indole. Colloid and Polymer Science. 2011;289(8):903–9. doi:10.1007/s00396-011-2410-3
[20] Syed Abthagir P, Dhanalakshmi K, Saraswathi R. Thermal studies on polyindole and polycarbazole. Synthetic Metals. 1998;93(1):1–7. doi:10.1016/s0379-6779(98)80125-2
[21] Joshi L, Prakash R. One-pot synthesis of Polyindole–Au nanocomposite and its nanoscale electrical properties. Materials Letters. 2011;65(19-20):3016–9. doi:10.1016/j.matlet.2011.06.036
[22] Rajasudha G, Shankar H, Thangadurai P, Boukos N, Narayanan V, Stephen A. Preparation and characterization of polyindole–ZnO composite polymer electrolyte with LiClO4. Ionics. 2010;16(9):839–48. doi:10.1007/s11581-010-0472-8
[23] Wadatkar NS, Waghuley SA. A novel studies on electrical behaviour of chemically synthesized conducting polyindole. Indian Journal of Physics. 2018 30;92(12):1551–9. doi:10.1007/s12648-018-1257-6
[24] Gupta B, Chauhan DS, Prakash R. Controlled morphology of conducting polymers: Formation of nanorods and microspheres of polyindole. Materials Chemistry and Physics. 2010;120(2-3):625–30. doi:10.1016/j.matchemphys.2009.12.026
[25] Bhagat DJ, Dhokane GR. Novel synthesis and DC electrical studies of polyindole/poly(vinyl acetate) composite films. Chemical Physics Letters. 2015;619:27–31. doi:10.1016/j.cplett.2014.11.052
[26] Wadatkar NS, Waghuley SA. Complex optical studies on conducting polyindole as-synthesized through chemical route. Egyptian Journal of Basic and Applied Sciences. 2015;2(1):19–24. doi:10.1016/j.ejbas.2014.12.006
[27] Deraman SK, Subban RHY, Nor Sabirin M. Ionic Conductivity of PVC-NH4I-EC Proton Conducting Polymer Electrolytes. Advanced Materials Research. 2012;545:312–6. doi:10.4028/www.scientific.net/amr.545.312
[28] Bhagat DJ, Dhokane GR. Electro-optical properties of one pot synthesized polyindole in the presence of poly(vinyl acetate). Electronic Materials Letters. 2015;11(3):346–51. doi:10.1007/s13391-015-4426-1
[29] Waghuley SA, Yenorkar SM, Yawale SS, Yawale SP. Application of chemically synthesized conducting polymer-polypyrrole as a carbon dioxide gas sensor. Sensors and Actuators B: Chemical. 2008;128(2):366–73. doi:10.1016/j.snb.2007.06.023
[30] Waghmare RV, Belsare NG, Raghuwanshi FC, Shilaskar SN. Study of d.c. electrical conductivity of paranitroaniline doped (1:1) polyvinylchloride and poly(methyl methacrylate) polyblends. Bulletin of Materials Science. 2007;30(2):167–72. doi:10.1007/s12034-007-0030-9
[31] Michael M., Jacob MM., Prabaharan SR., Radhakrishna S. Enhanced lithium ion transport in PEO-based solid polymer electrolytes employing a novel class of plasticizers. Solid State Ionics. 1997;98(3-4):167–74. doi:10.1016/s0167-2738(97)00117-3
[32] Chandra A, Chandra S. Mixed-anion effect in polyethylene-oxide-based sodium-ion-conducting polymer electrolytes. Journal of Physics D: Applied Physics. 1994;27(10):2171–9. doi:10.1088/0022-3727/27/10/028
[33] Kim CE, Hwang HC, Yoon MY, Choi BH, Hwang HJ. Fabrication of a high lithium ion conducting lithium borosilicate glass. Journal of Non-Crystalline Solids. 2011;357(15):2863–7. doi:10.1016/j.jnoncrysol.2011.03.022
